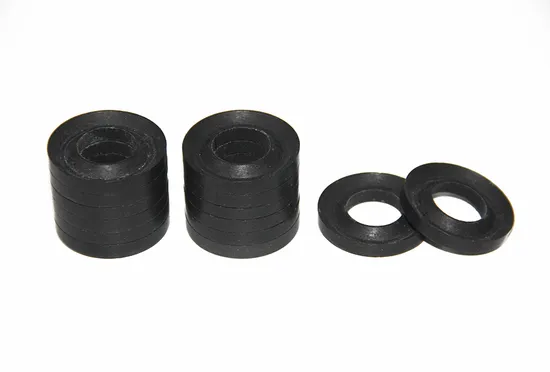

High Performance PTFE Graphite V

• Overview
• Product Description
• Product Performance
• Advantages
• Product Display
• Our Service

Overview

Basic Info.

Model NO.	Graphite V-shaped Packing Ring
Type	Shaft Seal
Performance	Corrosion
Shape	O-Ring
Standard	Standard, Nonstandard
Color	Black
Hardness	30-90 Shore
Usage	Engine, Transmission, Rear Axle
Dimension	Customizable
Transport Package	Wooden Packing
Specification	Support customization
Trademark	JSLW
Origin	China
HS Code	39209910
Production Capacity	50tons/Month

Packaging & Delivery

Package Size100.00cm * 100.00cm * 100.00cm Package Gross Weight20.000kg

Product Description

Product Display: Product Packaging: Factory And Equipment:
Certificate Display:Exhibition Photos:

Our Service:
1. Providing technical consultation.2. Samples are free. 3.We could customize various products with your brand logo according to your requirements. 4. Your inquiry will be replied within 1 hours during working time,Within 24 hours when rest time. 5.Orders will be produced exactly as request and approved samples.6. Before shipment,our QC will have inspection to make sure the quality. 7.We always try best to ensure every order to delivery in time. 8.Special packaging according to request.

Product Description

Product Description:

Introduction of PTFE V-type packing: PTFE tetrafluoroethylene V-type packing---specially used for shaft motion sealing packing, the selected packing can be a single material, such as polytetrafluoroethylene (PTFE) or graphite (sheet/filament), or composite material , Such as PTFE-graphite, PTFE plus silk, PTFE plus carbide, asbestos-graphite, etc., as well as PTFE plus carbide and asbestos reinforced PDR0.8, carbon fiber composite material PEEK, acetal ACETAL and super polyethylene UHMWPE. The filler can be made into ring (car-made or pressed) or silk-like (woven).
Product Performance: Note: The above parameters are for reference only. The actual data is based on the product test data.
Advantages: PTFE has good lubricity, good chemical resistance, low friction coefficient and wide operating temperature range, and is generally used for temperatures below 230°C. Usually made into a V-shaped ring, V-shaped processing and forming can be divided into 60° (general occasions) and 90° (high pressure occasions) structures. The temperature is 230-350ºC, generally filled with high temperature resistant materials such as carbon fiber and PPL. When the working temperature is higher than 350ºC, use PPL para-polystyrene packing, or choose to add an extended valve cover. Different combinations of filler materials and types make it more widely used. The main consideration for the selection of packing is the working temperature of the packing and the sealing effect, friction, and service life. The requirements for packing are: 1.It has a certain degree of plasticity, and can produce a certain radial force under the action of pressing force and closely contact the valve stem. 2.Have sufficient chemical stability. It does not pollute the medium, the filler is not swollen by the medium, the impregnant in the filler is not dissolved by the medium, and the filler itself does not corrode the sealing surface. 3.Good self-lubricating performance, wear resistance and low friction coefficient. 4.When the valve stem has a small amount of eccentricity, the packing should have sufficient floating elasticity. 5.Simple manufacturing and convenient filling. Product Performance

Test Items	Unit	Index
Density	g/cm3	2.1-2.3
Coefficient Of Friction	/	0.04
Operating Temperature	ºC	-180-+260
Melting Temperature	ºC	325
