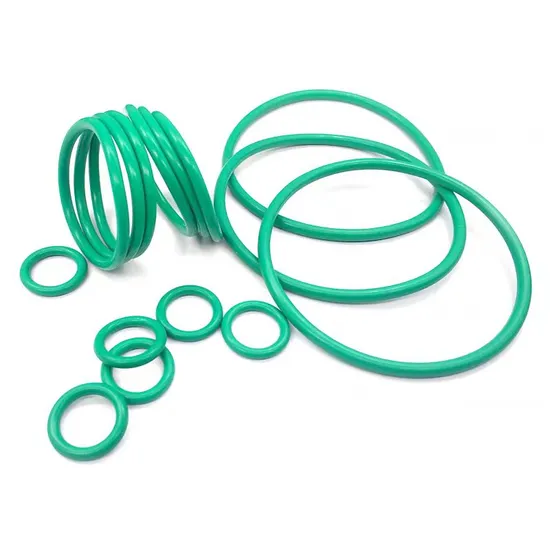

Cock Ring Silicone Rubber Flat O Ring Industry Resistance Industry Oil Resistance, Customized 20~90 Rubber O Rings

• Overview
• Company Profile

Overview

Basic Info.

Model NO.	o-ring
Type	Stationary Seal
Speed	High Speed
Pressure	Pressure Type
Lip	O Ring
Standard	Standard
Customized Material	Acceptable
Hardness	70-90 Shore
Color	Customized
Application	Machine
Other Usage	Hydraulic Excavator Seal
Feature	High Temperature
Size	Customized
MOQ	1000 PCS
Transport Package	Carton
Specification	40*40*40
Trademark	customized
Origin	Hebei
HS Code	4016931000
Production Capacity	500000

Packaging & Delivery

Package Size10.00cm * 10.00cm * 5.00cm Package Gross Weight0.200kg

Product Description

NBR O ring is the most common and simplest types of seal with excellent sealing properties and durability. Used in engines and gearboxes, also found in anything from shower heads to an aircraft, garden hoses and pumps etc., They can be used as face to face gasket style seals or as shaft seals and allow both rotary and linear movement. They have a 70 Shore hardness and an operating temperature range of -30°C to +120°C. Highly resistant to many chemicals, petroleum, diesel, LPG etc.

Acrylonitrile Butadiene Rubber (NBR), usually shortened to Nitrile, was developed in 1941 as the first oil resistant rubber. Grades with high acrylonitrile content have better oil resistance whereas low acrylonitrile content gives better low temperature flexibility and resilience.

• Nitrile has moderate physical properties but good abrasion resistance. Gas permeability is low.
• Ozone resistance and electrical properties are poor.
• Flame resistance is poor and it is not suitable for use with use with polar solvents (e.g. MEK).
• Certain grades can be compounded with PVC to improve ageing, flame, petrol and ozone resistance.
• Carboxylated grades of Nitrile (XNBR) have improved physical properties and higher temperature resistance.
• Potable water (WRAS) compounds are available as well as mixes suitable for use in the food and pharmaceutical industries.
• Typical applications include accumulator bladders, diaphragms, gaskets, hose, liners, O-rings and seals.
• Typical working temperature range: -25°C to +100°C. Low acrylonitrile materials good down to -50°C & peroxide cured materials up to +150°C.
• Hydrogenated Nitrile Rubber (HNBR) properties depend upon the acrylonitrile content and the degree of hydrogenation of the butadiene copolymer.
• They have rather better oil and chemical resistance than Nitrile Rubber and can withstand much higher temperatures.
• HNBR has excellent resistance to sour oil and gas, steam, hot water and ozone.

We are a company specializing in the production and sales of oil seals. We integrate procurement, inspection, and sales to provide customers with professional services. We have a professional purchasing team, inspection team, and sales team, each member has professional oil seal product knowledge. The products we are good at include rubber products, O-rings, metal skeleton oil seals, hydraulic oil seals, automotive oil seals, etc. We have a wide range of oil seals and accessories in stock in our warehouse, and delivery is guaranteed to be as fast as possible. We have won the satisfaction and recognition of customers all over the world with our business philosophy of quality first and customer demand first.

FAQ: Q 1. What is the payment term?
A: We accept T/T , 100L/C at sight Western Union, VISA, Paypal are also accepted.
Q 2. What is the normal lead time for product orders?
A: If it is in stock, it usually takes 1-2 days. Or if the goods are not in stock, it will take 5-10 days, which is based on the order quantity
Q 3. What kind of certificates do you have?
A: We have passed the ISO9001:2008 and CE and ROHS.
Q4: Can you supply the samples?
A: Yes, sample for free.
Thank you for visiting our website Any other questions please inquiry us feel freely.

Appli-cation	General industrial machines				Automobiles		Aircraft
Standard	JIS B 2401			Old ISO 3601	JASO F 404		AS 568 AS 28775A
Classi- fication	JIS code	Remarks (hardness measured by type A durometer)	Old JIS identifi cation code	Remarks	Material class	Remarks	Remarks
Material	NBR-70-1 NBR-90 NBR-70-2 EPDM-70 EPDM-90 VMQ- 70 FKM-70 FKM-90 HNBR-70 HNBR- 90 ACM-70 SBR-70*	Mineral oil resistance (A70) Mineral oil resistance (A90) Gasoline resistance (A70) Animal oil, vegetable oil, and brake fluid resistance (A70) Animal oil, vegetable oil, and brake fluid resistance (A90) High-temperature application resistance (A70) High-temperature application resistance (A70) High-temperature application resistance (A90) Mineral oil and high-temperature application resistance (A70) Mineral oil and high-temperature application resistance (A90) High-temperature application and mineral oil resistance (A70) Animal oil and vegetable oil resistance (A70)	Class 1-A Class 1-B Class 2 Class 3 - Class 4-C Class 4-D - - - - Class 3	For mineral- based fluids Class: JIS NBR-70-1	Class 1-A Class 2 Class 3 Class 4-C Class 4-D Class 4-E Class 5	General mineral oil resistance Gasoline resistanceAnimal oil, vegetable oil, and brake fluid resistance High-temperature application resistanceHigh-temperature application resistanceHigh-temperature application resistanceCoolant resistance	For mineral-based fluids Class: JIS NBR-70 NBR-90 FKM-70
Appli-cation	P: For dynamic use and static sealing V: For vacuum flanges G: For static sealing S: For slim static sealing (not standardized in the JIS)			For generalindustrial use	For dynamic use and static sealing		For static sealing

Detailed Photos DIFFERENT FROM NBR FROM HNBR

ITEM	NBR	HNBR
Density, g/cm3	1.3	1.3
Elongation at Break, %	380	300
Maximum Temperature Mechanical, °C	110	190
Strength to Weight Axial, points	3.9	4.1
Strength to Weight Bending, points	12	12
Tensile Strength Ultimate (UTS), MPa	18	19
